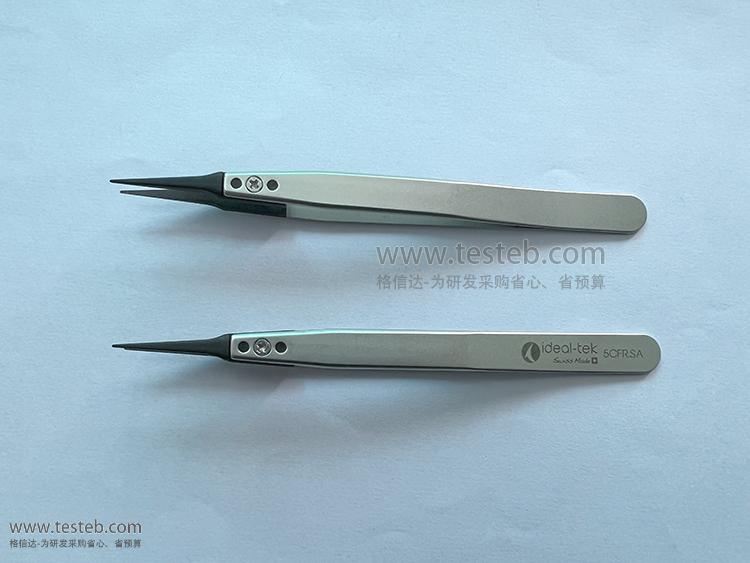

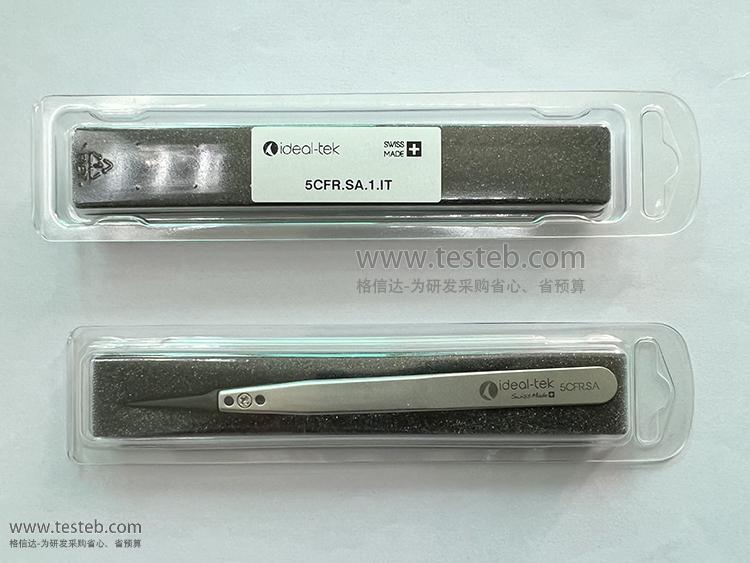

ideal-tek 5CFR.SA塑料頭鑷子尖部寬度厚度0.5mmx0.5mm,very fine非常尖細,用于微電子元件、芯片、微機械零件等細小物體夾持,可替換的CF碳素塑料尖頭ESD防靜電,具有低摩擦和自潤滑性能,良好的熱穩定性,耐溫130-190℃。
瑞士Ideal-tek鑷子具有種類繁多、精密的塑料鑷子,方便用戶在不同應用中選擇相應材質。CF碳素纖維樹脂材質具有低摩擦和自潤滑性能,良好的熱穩定性,ESD防靜電安全,非常適合用來夾取敏感電子元件、芯片、玻璃和陶瓷基板等,如5CFR.SA鑷子。CP高性能PEEK聚醚醚銅具有非常出色的耐化學品和耐腐蝕性能,用于清潔、化學溶劑環境、組裝過程中處理元件,耐高溫300℃,ESD安全,高硬度耐磨,如259CPR.SA。
1、Engineering plastic type CF工程塑料碳素樹脂纖維
PA66/CF30 polyamide 66 reinforced with 30 wt% carbon fibre 含30wt%碳纖維增強的PA66/CF30聚酰胺66
heat stabilized, very low coefficient of linear thermal expansion, good heat capability
熱穩定,線性熱膨脹系數非常低,良好的散熱能力,耐溫130-190攝氏度
very high rigidity, excellent tensile and flexural strength, fatigue and creep resistance
極高的剛性,出色的拉伸和彎曲強度,抗疲勞和蠕變性能
low friction, self lubricating properties, excellent wear and abrasion resistance
低摩擦,自潤滑性能,出色的耐磨性
good chemical resistance (oils, grease, fuels, non polar solvents); not resistant to strong acids, alkalis and hot water or steam
良好的耐化學性(機油,油脂,燃料,非極性溶劑);不耐強酸、強堿和熱水或蒸汽
ESD safe material, (avoids dust attraction, sparks generation,ignition sources)ESD防靜電(避免塵埃,火花,點火源)
typical applications include handling of sensitive components and devices (electronic components, micro-mechanical parts, glass and ceramic substrates, capillary, etc.)
典型應用包括處理敏感組件和設備,如電子元件、芯片、微機械零件、玻璃和陶瓷基板、毛細管等
IDEAL-TEK 5CFR.SA鑷子手柄材質——SA低碳奧氏體鋼(即316L不銹鋼);鑷子頭材料——PA66/CF30(聚酰胺66加30%碳纖維),耐溫范圍130-190℃,ESD防靜電阻值10的2次方歐姆。
2、High-performance plastic type CP高性能塑料PEEK聚醚醚銅
PEEK/CF30 polyetheretherketone reinforced with 30 wt% carbon fibre
very hard, rigid, high tensile and flexural strength, very high wear resistance
high heat capability (260-300°C), good dimension stability, low thermal linear expansion coefficient
excellent resistance to chemicals and aggressive agents, excellent resistance to thermal ageing
ESD safe material, low surface resistivity (105 Ohm)
typical applications include handling of components in cleaning/chemical/assembly processes also at high temperatures (soldering)
含30wt%的碳纖維增強的PEEK/CF30聚醚醚酮
非常堅硬,剛性,高抗拉強度和撓曲強度,非常高的耐磨性
高熱容量(260-300°C),良好的尺寸穩定性,低的線性熱膨脹系數
出色的耐化學品和耐腐蝕性能,出色的抗熱老化性能
ESD安全材料,低表面電阻率(10^5歐姆)
典型應用包括清潔、化學溶劑環境、組裝過程中處理元件,可在高溫焊接下操作
Tweezers型號 | 系列形狀 | 尖頭尺寸(寬度x厚度 全長130mm) | 說明 | ||||||||||||||||||||||||||||||||||||||||||||||||
00CFR.SA 00CPR.SA 00CSVR.SA |
00中等尖部 | 1.0mm x 1.0mm |
CF 碳素樹脂,低摩擦,經濟型 常用款 CP PEEK材質,耐磨耐高溫、抗老化 SV 增強碳纖維,光滑無痕、耐腐蝕 |
||||||||||||||||||||||||||||||||||||||||||||||||
2ACFR.SA 2ACPR.SA 2ASVR.SA |
2A扁平頭 | 2.0mm x 0.5mm |
同上; SV:PVDF碳纖維,光滑無痕, 耐腐蝕-強酸、溶劑、化學品 |
||||||||||||||||||||||||||||||||||||||||||||||||
2ABCFR.SA 2ABCPR.SA 2ABSVR.SA |
2AB扁平彎頭 | 2.0mm x 0.5mm | 同上 | ||||||||||||||||||||||||||||||||||||||||||||||||
2AXCFR.SA 2AXCPR.SA 2AXSVR.SA |
2AX反叉自鎖鑷 | 2.0mm x 0.5mm | 同上 | ||||||||||||||||||||||||||||||||||||||||||||||||
2WFCPR.SA | 2齒爪晶圓鑷子 | 底寬6.6mm x長10.5mm,上部2個爪 | CP PEEK聚醚醚銅材質 | ||||||||||||||||||||||||||||||||||||||||||||||||
4WFCPR.SA | 4寸晶圓夾 | 底寬12mm x長10.5mm,上部4齒抓 | CP PEEK晶圓鑷子,耐磨耐高溫、抗老化 | ||||||||||||||||||||||||||||||||||||||||||||||||
5CFR.SA鑷子 5CPR.SA 5SVR.SA鑷子 |
5號精密尖直頭 | 0.5mm x 0.5mm,very fine非常尖細 |
CF 碳素樹脂,低摩擦,經濟型 CP PEEK材質,耐磨耐高溫、抗老化 SV 增強碳纖維,光滑無痕、耐腐蝕 |
||||||||||||||||||||||||||||||||||||||||||||||||
5XCFR.SA 5XCPR.SA 5XSVR.SA |
5X尖直頭反叉 | 0.5mm x 0.5mm | 同上 | ||||||||||||||||||||||||||||||||||||||||||||||||
7CFR.SA 7CPR.SA 7SVR.SA |
7鷹嘴彎頭 | 0.5mm x 0.5mm | 同上 | ||||||||||||||||||||||||||||||||||||||||||||||||
242CFR.SA 242CPR.SA鑷子 242SVR.SA |
242中等尖頭 | 1.5mm x 0.5mm | 同上 | ||||||||||||||||||||||||||||||||||||||||||||||||
246CFR.SA | 246彎角頭 | 0.5mm x 0.5mm,45°斜角彎頭 | CF 碳素樹脂,低摩擦,經濟型 | ||||||||||||||||||||||||||||||||||||||||||||||||
249CFR.SA 249CPR.SA 249SVR.SA |
249粗頭 | 2.0mm x 1.0mm | 同上 | ||||||||||||||||||||||||||||||||||||||||||||||||
259CFR.SA鑷子 259CPR.SA 259SVR.SA |
259細尖頭 | 0.5x0.5mm,strong, pointed尖細且堅固 | 同上 | ||||||||||||||||||||||||||||||||||||||||||||||||
替換鑷子頭 |
|
ideal-tek塑料頭鑷子規格說明書http://oznappies.com/download/202002/ideal-tek_4WFCPR_5CFR_259CFR.pdf
